H80 LHR
Supplier Information
Name:
Hydropower Systems
Contact:
JPAdlem
Phone:
0182857330
Email:
admin@hydropowersystems.co.za
Website:
https://www.hydropowersystems.co.za
Address:
10 Elenbroek street, Potchetstroom, 2351, , Potchetstroom, North West, 2351
Datasheets

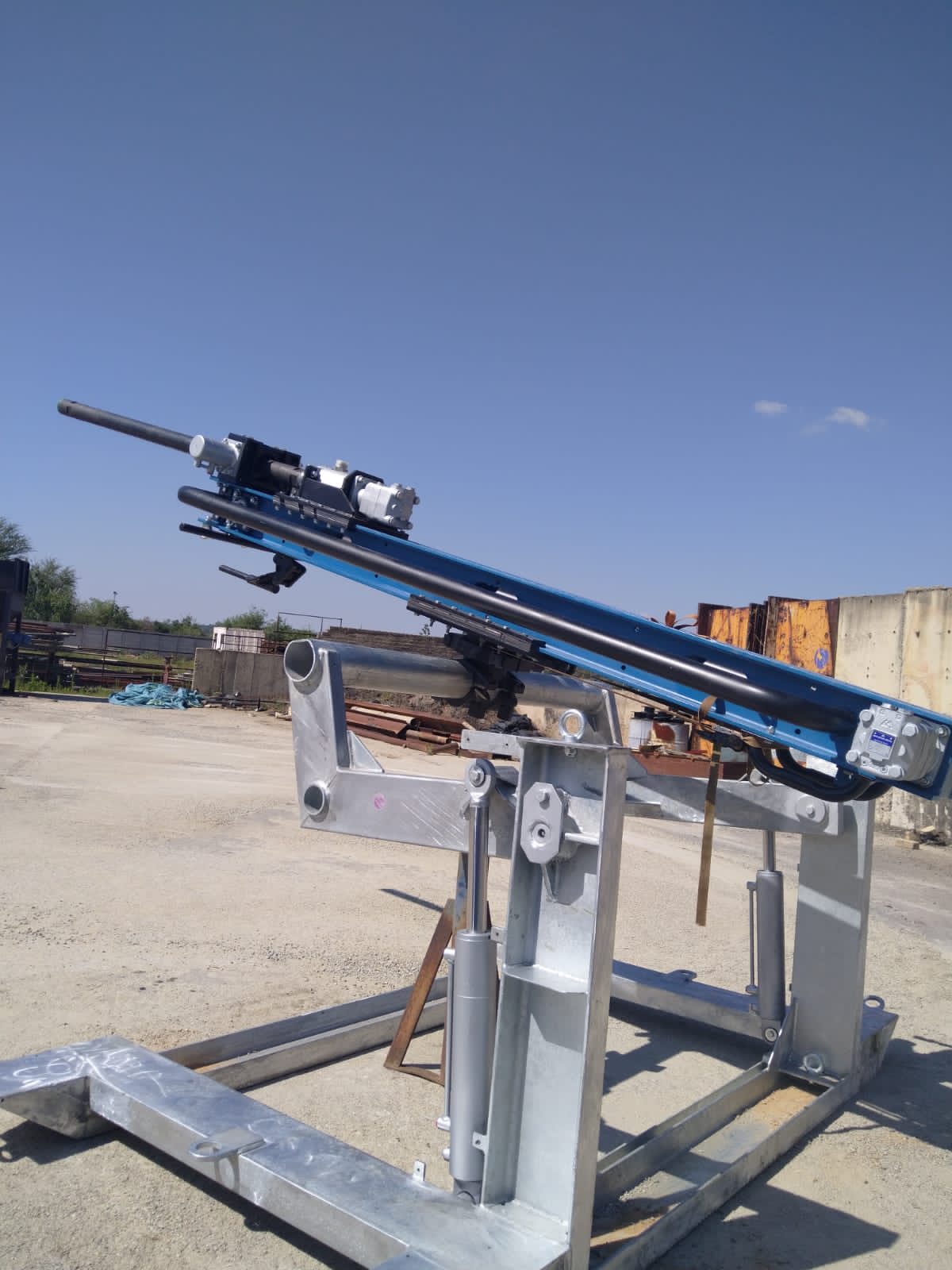

SUSTAINABLE LONG HOLE DRILLING HV-H80 LHR Hydropower - DTH Drilling in a Complete Package Replacing and outperforming any compressed air drill rig out there! Tough enough to complete any task while maintaining the maneuverability, enabling flexibility in operations! Easy implementation and adoption enables effortless operation for Women in Mining' Remote drilling
| Equipment Type |
Long hole drilling |
|---|---|
| OEM |
Hydropower Systems (HPS) |
| TRL |
TRL8 |
| Mining Type |
Underground mining |
| Mine Development |
Stoping,Development |
| Mining Activity |
Supporting,Cleaning,Blasting,Drilling |
| Mining Method |
Conventional,Mechanised |
| Mineral |
Gold & Platinum |
| Energy source |
Water hydraulic |
| Logistics & materials handling |
|
| ITComms |
|
| reefType |
Narrow |
| Highly Affordable | |
| High rate of penetration (ROP) | |
| Accurate drilling up to 100m | |
| Low Energy Consumption | |
| Extremely Mobile | |
| Remote drilling | |
| Safe Drilling in sensitive formations |
